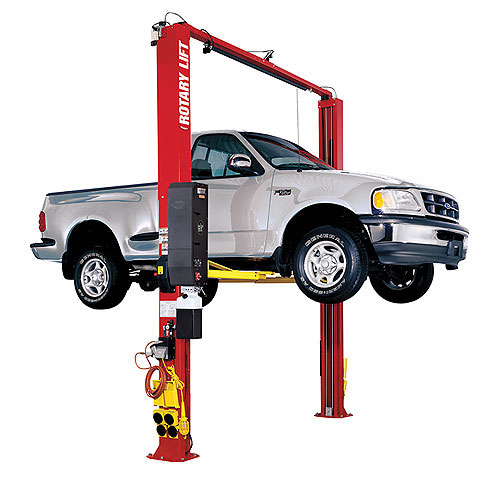

Rotary Lift Two Post Lift – SPO10 | Shockwave™ Available | Symmetric Lift
Capacity: 10,000 lbs.
For over 30 years, Rotary Lift has built quality into every two-post they’ve designed. The SPO10 has proven this time and time again. With features like the original single piece “double S” shaped column, true asymmetric columns, three-position flip-up adapters, available 3-stage arms with thread-up or truck adapters and extended height models, the SPO10 delivers everything your shop needs. Need a little more speed in your shop? Supercharge your lift with Shockwave™ and get 2x faster rise and descent, Spotline™ assisted vehicle spotting, and 110v DC power. With so many choices, why would you look anywhere else?
Trust The Industry Standard Symmetrical 10,000 lb. Two Post
- True Symmetrical column design
- Customizable with your choice of arms and adapters
- Extended height models available for added versatility
- ALI Gold Certified (SPO10X)
Available with Shockwave™ (SPO10SW). Designed Specifically For Bays Where Service Speed Is Paramount, Shockwave Equipped Lifts Are The Fastest In The World!
- 2X Faster Rise And Decent
- DC Power With Onboard 110v Charger
- Spotline™ Motion Activated Laser
Click here for the SPO10 Manual (allow popups, link will open in a new window)
Click here for the SPO10 Manual (allow popups, link will open in a new window)
|Adapters||Flip Up||Truck||Round||Flip Up||Truck||Round|
|Capacity||10,000 lbs.||10,000 lbs.||10,000 lbs.||10,000 lbs.||10,000 lbs.||10,000 lbs.|
|Rise||78 1/4″||80 1/4″||76 7/8″||81 1/4″||83 1/4″||79 7/8″|
|Base SPO10 Overall Height||11′ 8 1/2″||11′ 8 1/2″||11′ 8 1/2″||11′ 8 1/2″||11′ 8 1/2″||11′ 8 1/2″|
|FJ5153 1′ Extension Overall Height||12′ 8 1/2″||12′ 8 1/2″||12′ 8 1/2″||12′ 8 1/2″||12′ 8 1/2″||12′ 8 1/2″|
|FJ5154 2′ Extension Overall Height||13′ 8 1/2″||13′ 8 1/2″||13′ 8 1/2″||13′ 8 1/2″||13′ 8 1/2″||13′ 8 1/2″|
|FJ5154 4′ Extension Overall Height||15′ 8 1/2″||15′ 8 1/2″||15′ 8 1/2″||15′ 8 1/2″||15′ 8 1/2″||15′ 8 1/2″|
|Base SPO10 Required Ceiling Height||12′||12′ 4″||12′ 4″||12′ 4″|
|FJ5153 1′ Extension Required Ceiling Height||13′||13′ 4″||13′ 4″||13′ 4″|
|FJ5154 2′ Extension Required Ceiling Height||14′||14′ 4″||14′ 4″||14′ 4″|
|FJ5154 4′ Extension Required Ceiling Height||16′||16′ 4″||16′ 4″||16′ 4″|
|Overall Width||11′ 5 1/2″||11′ 5 1/2″||11′ 5 1/2″||11′ 5 1/2″||11′ 5 1/2″||11′ 5 1/2″|
|Drive-Thru Width||8′ 6 1/2″||8′ 6 1/2″||8′ 6 1/2″||8′ 6 1/2″||8′ 6 1/2″||8′ 6 1/2″|
|Front Arm Min/Max||31″-54″||27 1/2″-59″||27 1/2″-59″||31″-54″||27 1/2″-59″||27 1/2″-59″|
|Rear Arm Min/Max||31″-54″||27 1/2″-59″||27 1/2″-59″||31″-54″||27 1/2″-59″||27 1/2″-59″|
|Min. Adapter Height||4 3/4″||4 3/4″||3 5/8″||4 3/4″||4 3/4″||3 5/8″|
|Motor||2 HP||2 HP||2 HP||5 HP||5 HP||5 HP|
|Time of Full Rise/Decent||45 secs./40 secs.||45 secs./40 secs.||45 secs./40 secs.||25 secs./19 secs.||25 secs./19 secs.||25 secs./19 secs.|
|Min. Bay Size||12’x24′||12’x24′||12’x24′||12’x24′||12’x24′||12’x24′|
Product Assembly & Setup
Selling automotive equipment we have found that most of our customers are mechanically minded and look forward to settting up and assembling their new purchase. Most items we offer can be setup and assembled by two people within a reasonable time frame. Before tackling this project here are a few tips that we think will make your life a little bit easier:
- Review the manually fully before you begin setup. The manual should be included with your item but if you cannot locate it simply go to the product page on our website and download it for FREE. This manual has been put together and maintained over the years and will include all the tricks we have learned to make the assembly of your as seamless as possible
- Don't like reading or don't need the manual? That's fine, but maybe take a minute and check out the videos we have posted on each of the product pages. We understand that some people have the ability to problem solve on their own but why not get the inside information so you can spend less time having to problem solve?
- If you haven't already received your item, get an uderstanding of you will need to transport or unload it. Shop equipment like tire changers and wheel balancers are a dream to handle compared to car lifts. If you are assembling your car lift take time to plan our your install.
- Start by making sure the install location and area(s) surrounding it are clean and clear making it easy for you to move around and manipulate the pieces.
- Try to get the entire crate close to the install area without impeding it. There are some heavy pieces that need to be moved into place and the less you have to move them the better.
- Disassemble the packaging and pieces and have a look through them to ensure all pieces are there and get an idea of what each item is. You are going to need them at one point and if you have someone holding a heavy item while you search out a bolt or hose it is going to be a long day!
- If you are reading the manual, read 2-3 steps ahead of where you are at. We have heard time and time again how a customer has installed their lift to 90% only to find that a hose or cable needed to be put in place two steps earlier and now they have to essentially disassemble the lift only to put a small piece in place and then reassemble it.
- Be sure to review the electrical requirements of the product your are purchasing. Some items are supplied in either 110V or 220V. Others are manufactured so you can just plug it in while some have a "pig tail" which means you will need an electrician to either hard wire it to your panel or install a plug
- If you are assembling a car lift, you will need hydraulic fluid to make the lift work. PLEASE NOTE: we do not supply the hydraulic fluid for your lift. In general we recommend AW-32 hyraulic fluid for use in all of our car lifts (regardless of the type). A 5 gallon pale is typically more than enough and will usually leave you with a little extra
- When filling your hydraulic fluid for the first time don't rush the process. Fill the resevior to 1/3 or 1/2 and then run the lift up and down. Get the air and kinks out and then, when the lift is in the lowest position, fill it to 2/3 or 3/4 and run the lift up and down again. DO NOT fill the resevoir past 1/3 or 1/2 when the lift is in the raised position as there is flud throughout the cyclinders and other components. We have heard many times that a customer has filled the resevoir full when the lift is in the raised position and the as soon as they begin lowering the lift the resevoir becomes overfilled and spills all over the shop. This is a huge mess to clean up.
- Some hydraulic cylinders may be "air locked" from manufacturing which will not allow the piston to extend when pulled by hand. This does not mean the cyclinder is damaged, it is simply a result of the manufacturing process. To overcome this, start by ensuring that your feeder hoses to the cylinder are not connected (this would close the system and will not let air in or out). Using a ratchet strap or similar item, slowly put tension on the piston end and gently apply pressure trying to extend the piston out of the cylinder. Resistance will build up in the first couple inches of extending and then the "air lock" should break. You might get a little pop and the ratchet strap will loosen suddenly (hence the reason to apply pressure slowly) and now you should be able to extend and retract the piston by hand with little effort.
These tips are friendly suggestions from us and the years of experience we have gained working with these products. Although they don't apply to every product, every time we hope that you will take them at face value while still reviewing the other information (such as manuals and videos) we provide in regards to assembling and setting up your product. Your safety and satisfaction are our paramount concerns. If there are any questions or concerns throughout the assembly or operation process of your product please do not hesitate to contact us.
